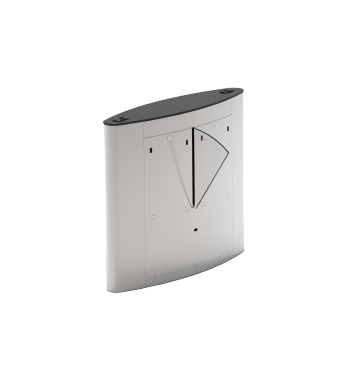

FBL5200 Pro
FBL5200 Pro Flap Barrier Turnstile for additional Lane.
FBL5211 Pro Flap Barrier Turnstile for additional Lane (w/ controller and RFID reader)
FBL5222 Pro Flap Barrier Turnstile for additional Lane (w/ controller and fingerprint & RFID reader)
The FBL5200 Pro is a Flap Barrier Turnstile for additional Lane series designed for smooth and silent operation and draws very little power. It’s made of stainless steel which makes FBL5200 Pro highly durable.
During emergencies, the barriers automatically retract upward, thereby avoid users being trapped. A capacitor board for power outage safety can be installed for retracting the barrier automatically. FBL5200 Pro provides both security and convenient space, all in a very durable and elegant compact design.
| SUS304 stainless steel casework ensures long-lasting durability. |
| High-quality electrical components. |
| Barriers retract automatically during a power outage with capacitor board installed. |
| All smooth finishing. No exposed screws. |
| Ergonomic design makes the card and fingerprint authentication fast & simple for users. |
| FBL5200 Pro series is already integrated with our customers’ preference for either card or fingerprint access control reader. This greatly reduces installation time & expense. |
| FBL5200 Pro series and associated access control readers are all factory-tested prior to shipping. |
| LCD on the flap barrier control board, easy operation. |
| Power requirements | AC 100 ~ 120V/200 ~ 240V, 50/60Hz |
| Working temperature | -28℃~ 60℃ |
| Working humidity | 5% ~ 80% |
| Working environment | Indoor/outdoor (if sheltered) |
| Speed of throughput | Maximum 30/ minute |
| Lane width(mm) | 600 |
| Footprint(mm*mm) | 1200*840 |
| Dimensions(mm) | L=1200, W=300, H=1010 |
| Dimension with packing(mm) | L=1400, W=400, H=1100 |
| Net weight(kg) | 81 |
| Weight with packing(kg) | 116 |
| LED indicator | Y |
| Cabinet material | SUS304 Stainless Steel |
| Lid material | Tempered Glass |
| Barrier material | Acrylic |
| Barrier movement | Retracting |
| Emergency mode | Y |
| Security level | Medium |
