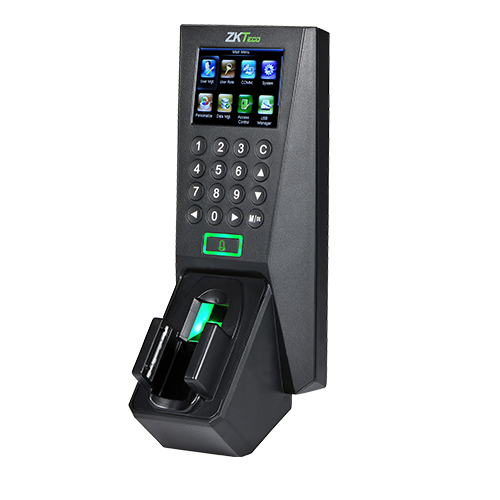

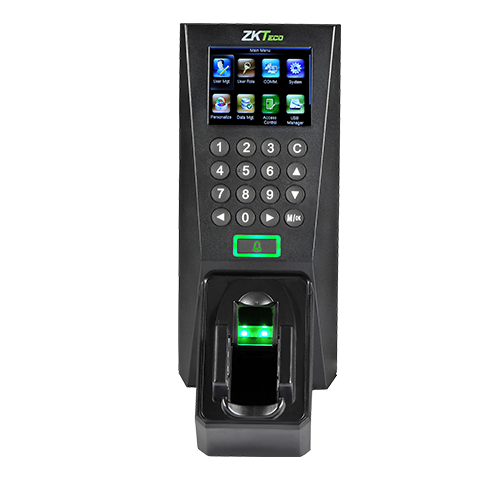

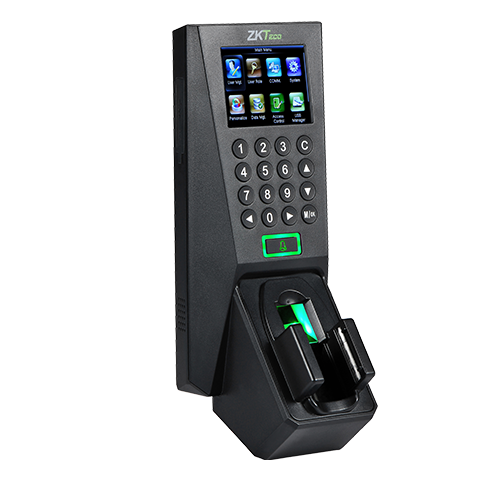

FV18 is a multi-biometric reader capable of capturing and processing finger vein and fingerprint biometric data at the same time. The new hardware platform uses ZMM220 core-board with 1.2Ghz CPU. With optimization of both hardware platform and algorithm, FV18 is one of high recognition rate, high security & high speed terminal. The device offers flexibility of both standalone installation and installation with any third-party access control panels which support standard wiegand signal.

Display 2.4-inch TFT LCD Color Screen
Fingerprint Capacity 1,000
Vein Capacity 1,000
Card Capacity 5,000 (Optional) ID / Mifare / HID Proximity card / iCLASS card
Transaction Capacity 100,000
SensorZK Finger vein senor
Algorithm VersionZKFinger VX10.0, ZKFingerVein VX3.0
CommunicationTCP / IP, USB-host, WIFI (Optional)
Access Control Interface3rd Party Electric Lock, Door Sensor, Exit Button, Alarm, Doorbell
Wiegand SignalInput and Output, SRB
Aux. Input1ea for linkage function
FunctionsDST, Record Query, Anti-passback
Optional Functions12V DC, 3A
Power Supply 12V DC, 3A
Operating Temperature 0 °C- 45 °C
Operating Humidity20%-80%
SDK and Software Standalone SDK, ZKAccess3.5 software
Dimension(L x W x H)210.9 x 80.1 x 96mm
Multi-Biometric reader with finger vein and fingerprint authentication
Unsurpassed performance with highly accurate finger vein recognition technology
2.4-inch TFT LCD Color Screen
Communication:TCP / IP, USB-host, WIFI (Optional)
