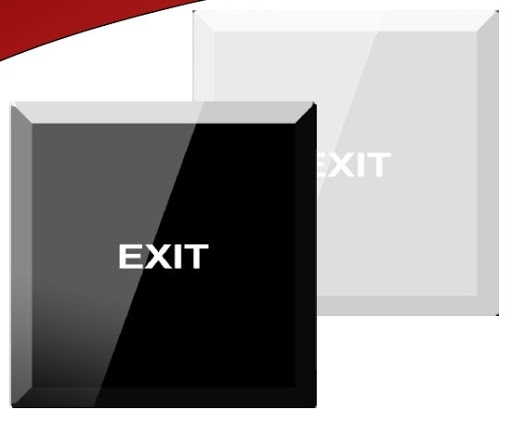

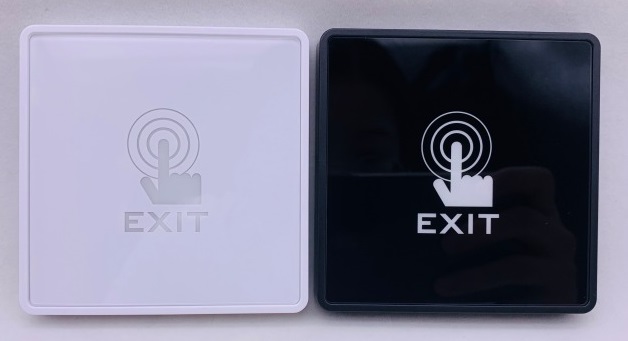

CONTACTLESS EXIT BUTTON
Datamine is supply and installation contactless exit button for door access system. We supply variety of contactless door exit button and can replace with exiting ABS push exit button.

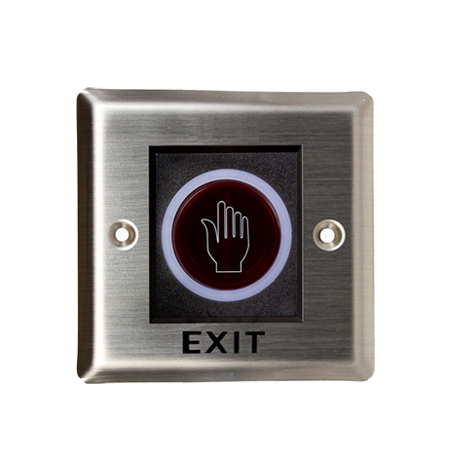

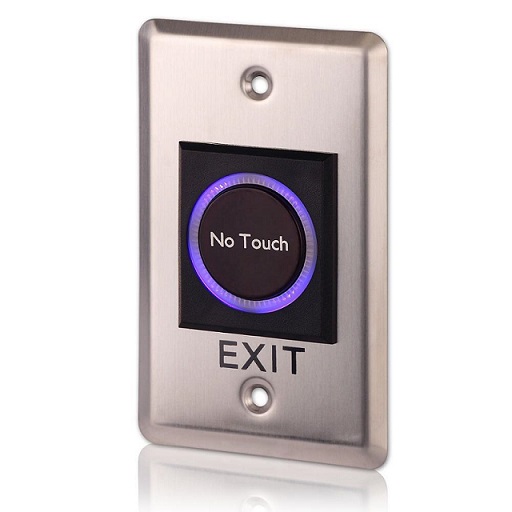

Contactless button is no need to touch and hand near 5 to 10cm contactless button, it will trigger the door access controller or reader to release the door. Its most suitable for pandemic situation. Contactless exit used for hospital, offices, schools and factory. Contactless exit button are more secured and use 12V DC to operate.
Please call our sales for more information of waving contactless door release button.
| When a moving hand is detected in front of the sensor, the back light will change from blue to green. At the same time, an onboard relay will be triggered by 0.5 second |
| Some contactless doors exit buttons come with break glass function to open door on emergency situation. Contactless exit button lower left-hand side come with emergency open indicator. |
| VCC | Input Voltage (+12Vdc) | |
| GND | Signal Ground (0 Vdc) | |
| DHO1 | Door Held Open Input | |
| DHO2 | Door Held Open Input | |
| RTE1 | Request to Exit Output(dry contact) | Trigger by N/C or N/O dry input or DHO 1 & 2 shot together; or DHO1 pull low and DHO2 Connected to GND. |
| RTE2 | Request to Exit Output(dry contact) | Trigger by N/C or N/O dry input or DHO 1 & 2 shot together; or DHO1 pull low and DHO2 Connected to GND. |
| One year manufacturer warranty |
